UL4469 is flat ribbon cable with rated temperature 105℃ and rated voltage 30V. Its has pure copper strands as conductor to ensure the excellent electric performance. Its cross-linked polyethylene XLPE insulation makes it much outstanding among the cable family.
| Style Number | Rated Temperature | Rated Voltage | Conductor Size | Jacket Thickness |
| UL4469 | 105℃ | 30V | 40AWG min. | 0.051mm |
 |
| UL4469 Cable |
UL4469 Properties
- Rated temperature: 105℃
- Rated voltage: 30V
- Passes UL VW-1 & CSA FT1 Vertical flame test
- According to: AWM, UL758, UL1581, UL62, UL4469
- Dielectric Strength: 2000V/min
Construction Details
- Conductor Material: TC – tinned copper.
- Insulation: AWM verified material.
- Shield: foil shield, braiding, copper strands wrapped, optional as per request.
- Outer Jacket: Cross-linked Polyethylene XLPE.
- Uniform insulation thickness of wire to ensure easy stripping and cutting.
Reliable Verification
- Aging test 136℃*168HRS: passed.
- Deformation test 121℃*60minutes: Passed.
- Heat Shock test 136℃*60minutes: No Crack.
- Cold Bend test -10℃*4HRS: No Crack
- European Directive 2011/65/EU (RoHS Directive) & Directive 2015/863/EU, no exemptions are required for RoHS Compliance.
Application
UL4469 cable is widely recognized for its versatility and reliability, making it a preferred choice across various industries. Key applications include
| Electronics (√) | Security Systems (√) | Automotive (√) | |
| Home Automation (√) | Industrial Equipment (√) | ||
With its broad applicability and proven performance, UL4469 cable becomes a trusted solution for modern connectivity across the industries.
Quality Factors
When choosing UL4469 cable for your application, prioritize the following key factors to ensure the reliability, safety, and longevity of your UL4469 cable installation.
- Conductor Size
- Insulation Materials
- Jacket Material
- Color Coding
- Quantity and Length
 |

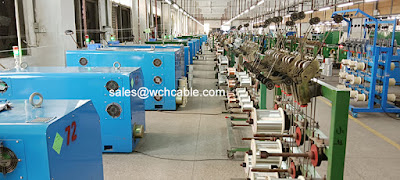

| UL4469 Manufactory |
FAQ. Frequently Asked Questions
Q: Can I replace XLPE jacket with Thermoplastic TPU, because we need a TPU jacketed cable?
A: Yes, we make TPU jacketed cable as well. There is TPU jacket equivalent available.
Q: What is the price of UL4469?
A: There are various specifications under style UL4469. Please contact WCH Cable (sales@wchcable.com) to get details of recommendation & formal quotation.
